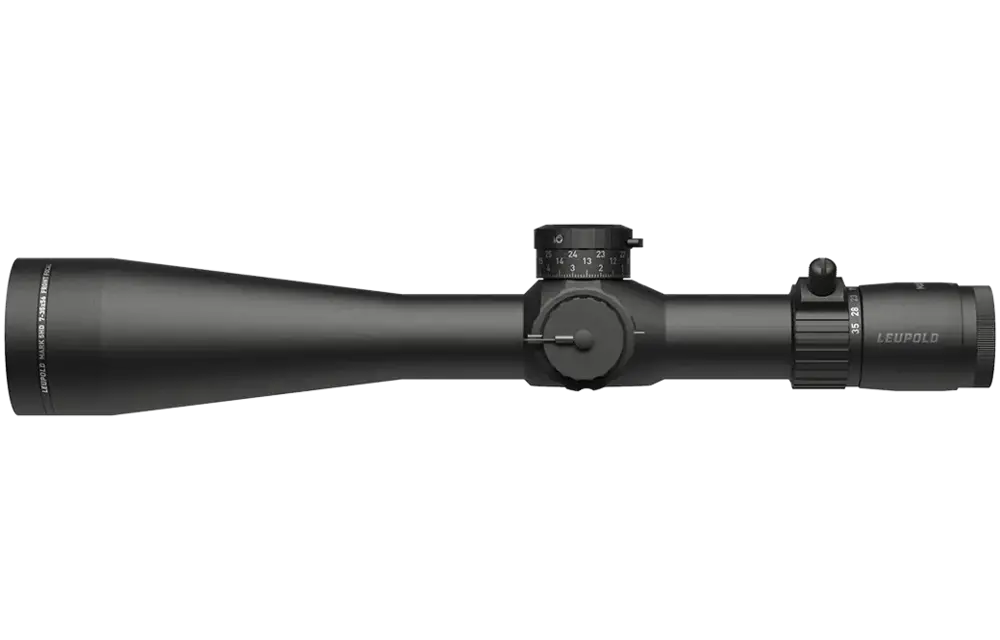

The Mark 5HD™ 7-35x56mm riflescope gives you the extra magnification you need to take advantage of the distances that modern precision rifles can shoot. With the right glass, no target is out of reach. And with the same dimensions and only 3 more ounces than its 5-25x56mm counterpart, you don't have to pay a weight penalty for the extra magnification.
Built around Leupold’s Professional-Grade Optical System, the Mark 5HD 7-35x offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
Get behind the Mark 5HD and you'll see the difference. From the superior edge-to-edge clarity and extreme low-light performance to the versatility of its multiple reticle options, this rugged scope will give you an advantage at the range or in the field. With three revolutions of elevation adjustment, the Mark 5HD was built to max out the performance of the latest long-range rifles and ammo. It's ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high-speed throw lever, so you can put accurate fire downrange faster.
Its unique combination of features, durability, and professional-grade optical performance guarantees that the Mark 5HD can handle any challenge you throw at it. It's 100% waterproof and fogproof, and like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed to perform for life.
Note that SKU 174549 is a second focal plane riflescope and SKU 174548 is a first focal plane riflescope.
| Adjustable Parallax | Side Focus |
|---|---|
| Battery Type | CR2032 |
| BDC Dial Included | No |
| Custom Dial Compatible | Yes |
| Daylight Bright Illumination | No |
| Custom Dial System (CDS) | No |
| Elevation Adjustment Type | M5C3 |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Locking Dial | Yes |
| Magnification Type | Variable |
| Revolution Indicator | Yes |

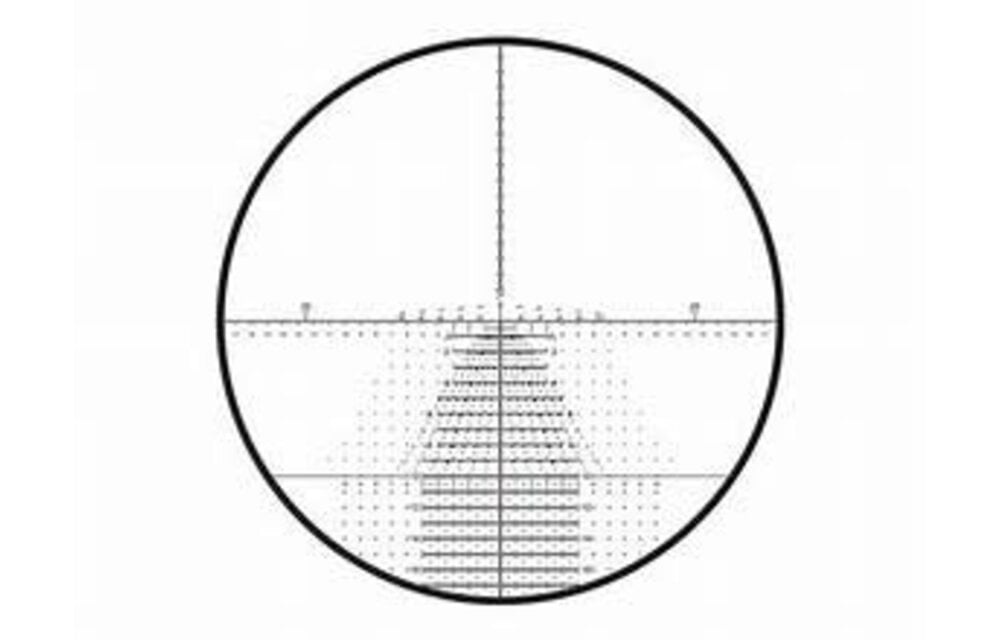

| Reticle | Illum. FFP Tremor 3 |
| Rezero Type | Set Screw |
| Reticle Type | Illuminated |
| Adjustable Objective | No |
| Switch Type | Dial |
| Windage Adjustment Type | Capped |
| Weight (oz) | 33 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 100 |
| Elevation Adjustment Range (MIL) | 29 |
| Elevation Adjustment Range (cm @ 100m) | 291 |
| Elevation Adjustment Per Revolution | 10.5 MIL |
| Elevation Dial Travel Limit | 30MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 50 |
| Windage Adjustment Range (MIL) | 15 |
| Windage Adjustment Range (cm @ 100m) | 145 |
| Windage Adjustment Per Revolution | 10 MIL |
| Magnification Max | 35 |
| Magnification Min | 7 |
| Objective Lens Diameter (mm) | 56 |
| Linear FOV Low Mag (ft@100yds) | 14.7 |
| Linear FOV High Mag (ft@100yds) | 3 |
| Angular FOV Low Mag (Degrees) | 2.8 |
| Angular FOV High Mag (Degrees) | .6 |
| Eye Relief Low Mag (in) | 3.6 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
| Battery Life (hr), Low Intensity | 1800 |
| Battery Life (hr), High Intensity | 96 |
| Number of Illum Settings | 7 |
