Vortex Optics

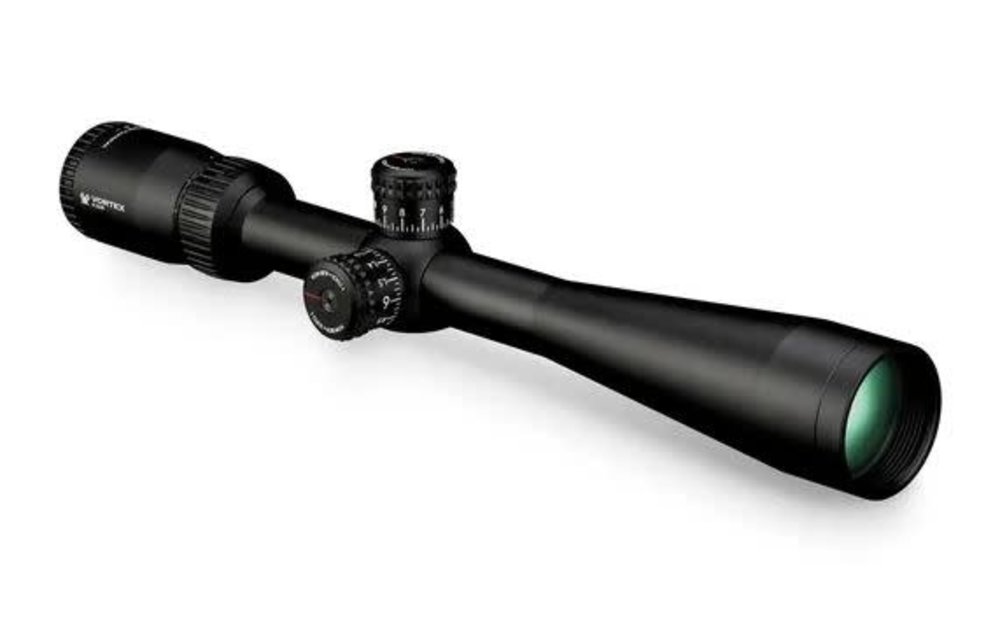

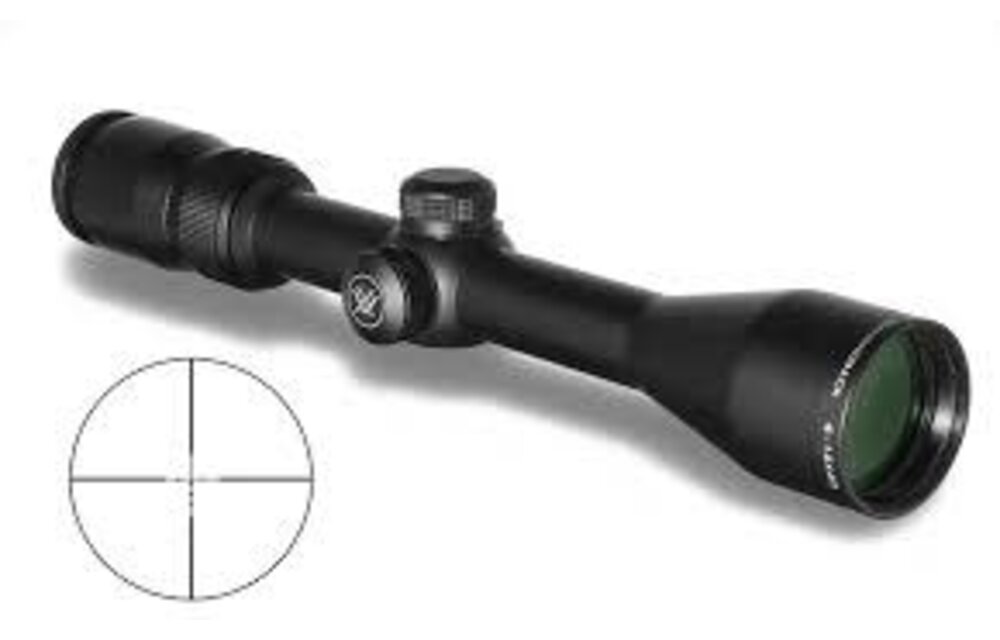

DBK-04-BDC Vortex Optics Diamondback 4-12 x 40 BDC

$199.95
DBK-04-BDC Vortex
DBK-04-BDC Vortex
In stock (30)
+ -

Product description

Diamondback®
4-12x40

Dead-Hold BDC (MOA) Reticle | 1 inch Tube

The Diamondback - loaded with features! First, the solid one-piece aircraft-grade aluminum alloy construction makes the Diamondback riflescope virtually indestructible and highly resistant to magnum recoil. Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise an eyebrow when crystal clear, tack-sharp images appear in the crosshairs. Look for all this and more in a riflescope you'd expect to cost quite a bit more-but doesn't. We can live with that.

Included in the Box
  • Removable lens covers
  • Lens cloth
Magnification 4-12x
Objective Lens Diameter 40 mm
Eye Relief 3.1 inches
Field of View 32.4-11.3 ft/100 yds
Tube Size 1 inch
Turret Style Capped
Adjustment Graduation 1/4 MOA
Travel Per Rotation 15 MOA
Max Elevation Adjustment 60 MOA
Max Windage Adjustment 60 MOA
Parallax Setting 100 yards
Length 12 inches
Weight 14.6 oz
Product Manual (PDF) Download
Reticle Manual (PDF) Download



Reticle

Dead-Hold BDC (MOA)

Customized dot design helps eliminate guesswork on holdover and windage corrections. Good for hunting/shooting at varying ranges where estimating holdover is a concern.


Diamondback 4-12x40-Dead-Hold BDC (MOA) Dimensions (in inches)

Lengths
L1 L2 L3 L4 L5 L6
12.0 2.4 2.0 5.6 3.0 3.1
Heights
H1 H2
1.89 1.69
