Specifications:
| Adjustable Parallax | Side Focus |
|---|---|
| Adjustable Objective | No |
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | P5 |
| Locking Dial | No |
| Revolution Indicator | No |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Capped |
| Custom Dial System (CDS) | No |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |

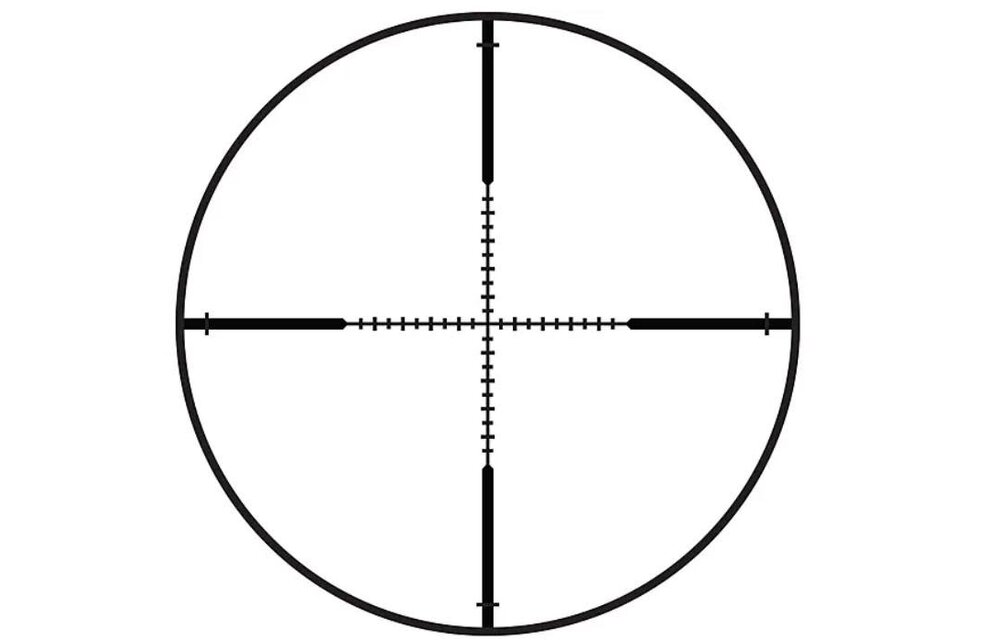

| Reticle | TMR |
| Light Management System | Elite Optical System |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Guard-ion Lens Coating | No |
| Weight (oz) | 20.5 |
| Elevation Adjustment Value per Click | 0.1Mil |
| Elevation Adjustment Range (MOA) | 52 |
| Elevation Adjustment Range (MIL) | 15 |
| Elevation Adjustment Range (cm @ 100m) | 154 |
| Elevation Adjustment Per Revolution | 6 MIL |
| Elevation Dial Travel Limit | 5.6MIL |
| Windage Adjustment Value per Click | 0.1Mil |
| Windage Adjustment Range (MOA) | 52 |
| Windage Adjustment Range (MIL) | 15 |
| Windage Adjustment Range (cm @ 100m) | 154 |
| Windage Adjustment Per Revolution | 5 MIL |
| Magnification Max | 18 |
| Magnification Min | 6 |
| Objective Lens Diameter (mm) | 50 |
| Linear FOV Low Mag (ft@100yds) | 12.6 |
| Linear FOV High Mag (ft@100yds) | 6.3 |
| Angular FOV Low Mag (Degrees) | 1.2 |
| Angular FOV High Mag (Degrees) | 2.4 |
| Eye Relief Low Mag (in) | 5.1 |
| Eye Relief High Mag (in) | 3.7 |
| Minimum Parallax-Free Distance (yd) | 75 |
