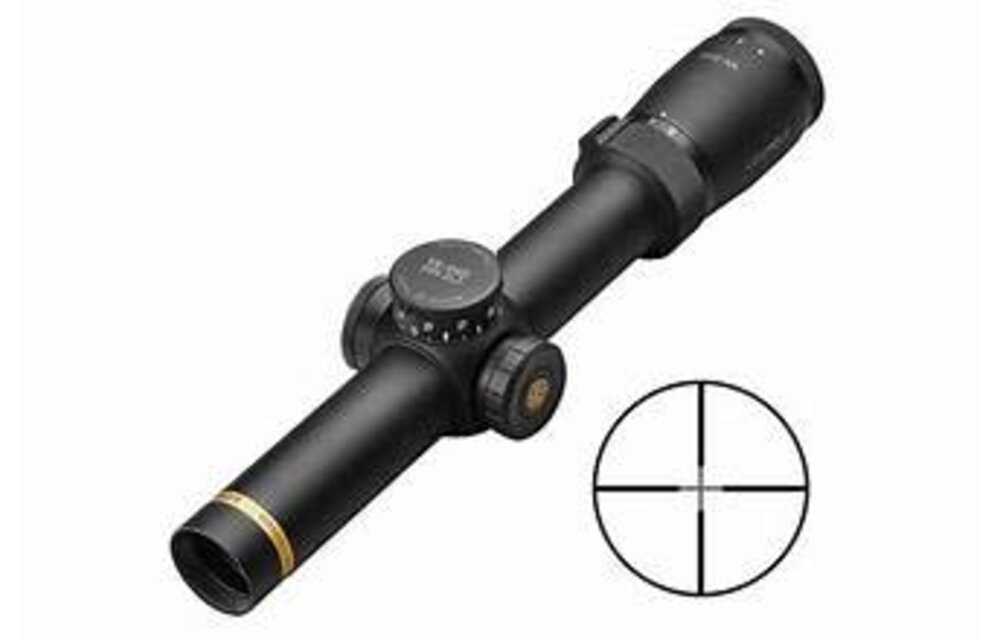

    VX-5HD 1-5x24 (30mm) CDS-ZL2 Illum. FireDot Duplex

    Brand: Leupold
    $ 1,299.99 In stock
    Don't let its small size fool you. This scope is big game ready. At only 13.4 ounces, our VX®-5HD 1-5x24mm riflescope is built for long days in the wilderness. But we didn't stop there; its 1-5x magnification range, rugged construction, and clear glass ma... Show more
    • Available for In Store Pick Up
    • PURCHASE ONLINE, PICK UP IN STORE
    • Shipping Not Available At This Time

    Product description

    Don't let its small size fool you. This scope is big game ready. At only 13.4 ounces, our VX®-5HD 1-5x24mm riflescope is built for long days in the wilderness. But we didn't stop there; its 1-5x magnification range, rugged construction, and clear glass make it a great choice for competition or tactical shooters, as well. Plus, with our proprietary Firedot® illumination you get a bright, intuitive aiming point that won't get lost in low-light conditions.

    The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.

    As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. It's 100% waterproof and fogproof. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.

    Specifications:

    Adjustable ObjectiveNo
    Side FocusNo
    Reticle Focal PlaneSecond Focal Plane
    Elevation Adjustment TypeCDS-ZL2
    Locking DialYes
    Revolution IndicatorYes
    Rezero TypeSet Screw
    Windage Adjustment TypePop-Up Rezero
    Custom Dial System (CDS)Yes
    Custom Dial CompatibleYes
    BDC Dial IncludedNo
    Reticle TypeIlluminated
    ReticleIllum. FireDot Duplex
    Light Management SystemProfessional-Grade Optical System
    Magnification TypeVariable
    Battery TypeCR2032
    Switch TypePush Button
    Nightvision Compatible IlluminationNo
    Daylight Bright IlluminationYes
    Electronic Reticle LevelNo
    Weight (oz)14.7
    Elevation Adjustment Value per Click1/4MOA
    Elevation Adjustment Range (MOA)170
    Elevation Adjustment Range (MIL)49
    Elevation Adjustment Range (cm @ 100m)495
    Elevation Adjustment Per Revolution20 MOA
    Elevation Dial Travel Limit38MOA
    Windage Adjustment Value per Click1/4MOA
    Windage Adjustment Range (MOA)170
    Windage Adjustment Range (MIL)49
    Windage Adjustment Range (cm @ 100m)495
    Windage Adjustment Per Revolution15 MOA
    Magnification Max5
    Magnification Min1
    Objective Lens Diameter (mm)24
    Linear FOV Low Mag (ft@100yds)120.9
    Linear FOV High Mag (ft@100yds)22
    Angular FOV Low Mag (Degrees)22.8
    Angular FOV High Mag (Degrees)7.7
    Eye Relief Low Mag (in)3.7
    Eye Relief High Mag (in)3.8
    Fixed Parallax-Free Distance (yd)150
    Battery Life (hr), Low Intensity1600
    Battery Life (hr), Medium Intensity1000
    Battery Life (hr), High Intensity300
    Number of Illum Settings8
    Objective Length (in)0
