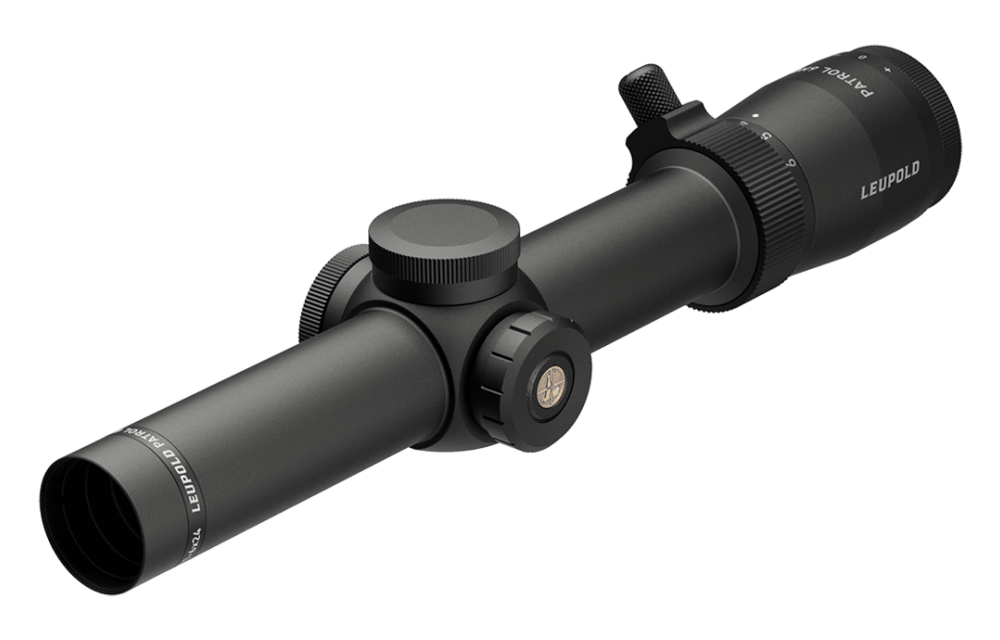

With the Patrol 6HD, you can hit the field without worry. Its ultra-lightweight, low-profile design and 1-6 magnification range let you engage threats anywhere from tight corners to open fields. Whether your mission is to protect and serve or you're looking for an edge in competition, this battle-ready riflescope will help you put more rounds on target.
Built on Leupold’s Professional-Grade Optical System, it offers unmatched light transmission, industry-leading glare reduction, and the clarity and resolution law enforcement officers trust in the most challenging lighting conditions. The Patrol 6HD will take your low-light capabilities to the max with an illuminated reticle that draws your eye to the center of the glass for fast, accurate shot placements. And a push-button illumination control guarantees smooth operation under stress.
This low-power variable optic is lightweight, rugged, and packed with features meant for high-speed action in the field or at your local range. It’s waterproof, fogproof, and guaranteed to perform for life so you can focus on the job instead of worrying about your optic.
Specifications:
| Badge | New |
|---|---|
| Adjustable Objective | No |
| Side Focus | No |
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | Pop-Up Rezero |
| Locking Dial | No |
| Revolution Indicator | No |
| Rezero Type | Pop-Up |
| Windage Adjustment Type | Pop-Up Rezero |
| Custom Dial System (CDS) | No |
| Custom Dial Compatible | No |
| BDC Dial Included | No |
| Reticle Type | Illuminated |
| Reticle | Illum. FireDot Duplex |
| Light Management System | Professional-Grade Optical System |
| Magnification Type | Variable |
| Battery Type | CR2032 |
| Switch Type | Push Button |
| Illuminated | Yes |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | Yes |
| Weight (oz) | 16.2 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 170 |
| Elevation Adjustment Range (MIL) | 49 |
| Elevation Adjustment Range (cm @ 100m) | 495 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | Total Scope Travel |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 170 |
| Windage Adjustment Range (MIL) | 49 |
| Windage Adjustment Range (cm @ 100m) | 495 |
| Windage Adjustment Per Revolution | 20 MOA |
| Magnification Max | 6 |
| Magnification Min | 1 |
| Objective Lens Diameter (mm) | 24 |
| Linear FOV Low Mag (ft@100yds) | 120.9 |
| Linear FOV High Mag (ft@100yds) | 19.2 |
| Angular FOV Low Mag (Degrees) | 22.8 |
| Angular FOV High Mag (Degrees) | 3.7 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Fixed Parallax-Free Distance (yd) | 150 |
| Minimum Parallax-Free Distance (yd) | 150 |
| Battery Life (hr), Low Intensity | 1600 |
| Battery Life (hr), Medium Intensity | 1000 |
| Battery Life (hr), High Intensity | 300 |
| Number of Illum Settings | 8 |
| Objective Length (in) | 0 |
