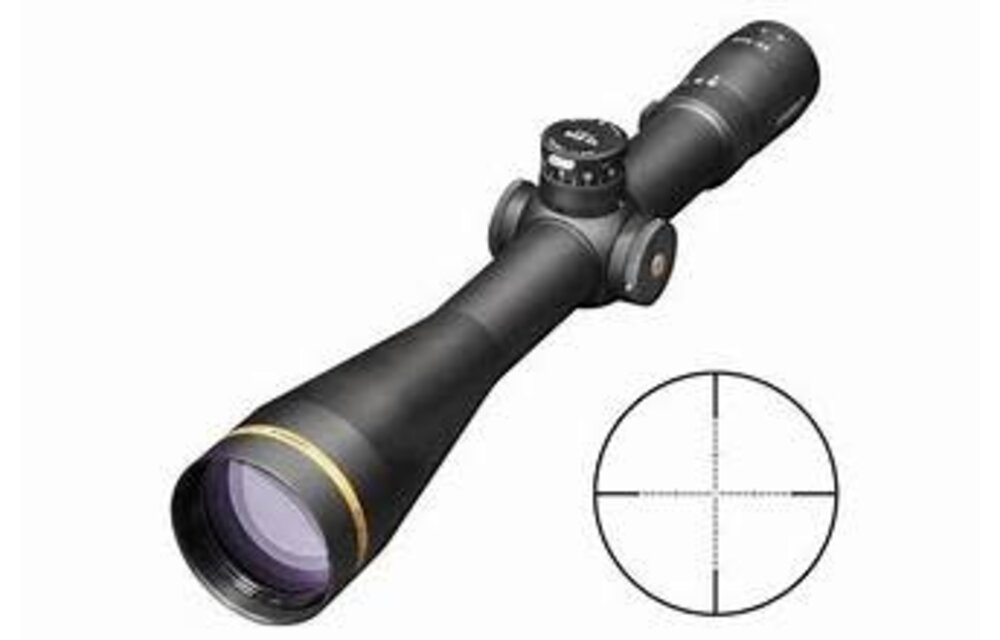

The VX®-5HD 4-20x52mm may just be that sweet spot you've been looking for in magnification ranges. Low enough magnification to get the job done in densely wooded areas and enough horsepower at the top-end to make accurate shots at long-range distances. Plus, the CDS-TZL3 elevation adjustment takes target-style adjustments to a new level with a push-button locking feature and an easy-to-read revolution indicator.
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field.
As the lightest, most rugged 5:1 riflescope in its class, your VX-5HD will never slow you down. And like all Leupold® riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Specifications:
| Adjustable Objective | No |
|---|---|
| Reticle Focal Plane | Second Focal Plane |
| Elevation Adjustment Type | CDS-TZL3 |
| Locking Dial | Yes |
| Revolution Indicator | Yes |
| Rezero Type | Set Screw |
| Windage Adjustment Type | Pop-Up Rezero |
| Custom Dial Compatible | Yes |
| BDC Dial Included | No |
| Reticle Type | Second Focal Plane |
| Reticle | TMOA |
| Light Management System | Professional-Grade Optical System |
| Magnification Type | Variable |
| Illuminated | No |
| Nightvision Compatible Illumination | No |
| Daylight Bright Illumination | No |
| Motion Sensor Technology (MST) | No |
| Electronic Reticle Level | No |
| Weight (oz) | 23.8 |
| Elevation Adjustment Value per Click | 1/4MOA |
| Elevation Adjustment Range (MOA) | 75 |
| Elevation Adjustment Range (MIL) | 22 |
| Elevation Adjustment Range (cm @ 100m) | 218 |
| Elevation Adjustment Per Revolution | 20 MOA |
| Elevation Dial Travel Limit | 60MOA |
| Windage Adjustment Value per Click | 1/4MOA |
| Windage Adjustment Range (MOA) | 75 |
| Windage Adjustment Range (MIL) | 22 |
| Windage Adjustment Range (cm @ 100m) | 218 |
| Windage Adjustment Per Revolution | 15 MOA |
| Magnification Max | 20 |
| Magnification Min | 4 |
| Objective Lens Diameter (mm) | 52 |
| Linear FOV Low Mag (ft@100yds) | 28.1 |
| Linear FOV High Mag (ft@100yds) | 5.8 |
| Angular FOV Low Mag (Degrees) | 5.4 |
| Angular FOV High Mag (Degrees) | 1.1 |
| Eye Relief Low Mag (in) | 3.7 |
| Eye Relief High Mag (in) | 3.8 |
| Minimum Parallax-Free Distance (yd) | 50 |
